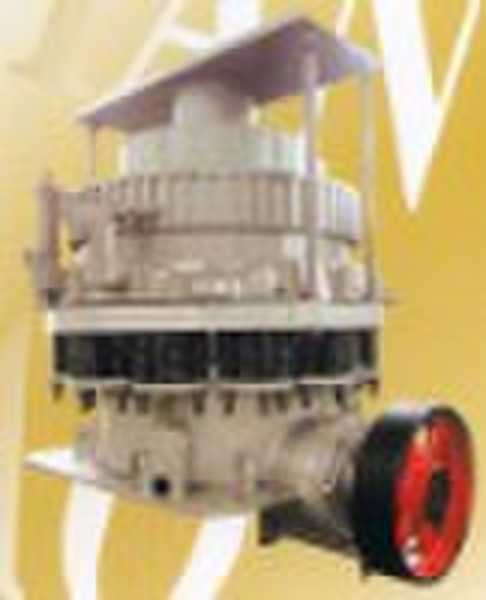

Compound Cone Crusher

COMPOUND CONE CRUSHER, CRUSHER The compound cone crusher, widely used in the industries of metallurgy, mining,building material, road construction, chemical and silicate, is suitable for crushing all kinds of ores and rocks with hardness of medium or above. This machine features thehigh crushing ratio, high efficiency, high handling capacity, low operation cost, easy adjustment and maintenance, and economical operation. Its reasonable design and high quality ensure to it a long service life and an even granularity of the crushed products.The chamber of the middle and large-sized crusher is equipped with a hydraulic cleaning system, the down time is accordingly reduced. Because of the wide range of products to be provided, users may choose different type of chamber upon different request freely. This machine adopts grease sealing so as to prevent the watering and draining system from being blocked, and to avoid the defect of easy mix of water and oil. The spring safety system is the protection unit against overload, and keeps the crushing chamber from being damaged by foreign substance or iron pieces. This crusher is divided into two types: the standard type and the short-head type. Normally, the standard type is fitted the crushing of the large-sized materials, which means that the size of discharge is also much coarse, and the short-head type is fitted the crushing of the small-sized materials due to its steep crushing cone, which will unavoidably influence the size of discharge, and therefore it is much suitable for producing the fine products. Consequentially the standard types are generally used for medium and coarse materials, and the short-head types for medium and fine materials. PRINCIPAL TECHNICAL DATA OF COMPOUND CONE CRUSHERS TYPE MODELS TYPE OF CHAMBER DIAMETER OF LARGE END OF CRUSHING CONE(mm) ADJUSTABLE RANGE OF DISCHARGE OPENING (mm) RECOMMENDED OPENING SIZE WHILE AT MIN. DISCHARGE OPENING (mm) MAX. FEED SIZE (mm) PRODUCING CAPACITY (t/h) MAIN MOTOR POWER (kw) WEIGHT (kg) 600 PYFB-0607 STANDARD FINE TYPE 600 6-38 72 61 16-54 22 4490 PYFB-0609 STANDARD COARSE TYPE 9-38 109 93 18-68 PYFB-0610 STANDARD SUPER COARSE TYPE 13-38 109 93 23-72 PFYD-0603 SHORT HEAD FINE TYPE 3-13 35 30 9-36 4580 PYFD-0605 SHORT HEAD ] COARSE TYPE 5-16 51 43 16-50 900 PYFB-0910 STANDARD FINE TYPE 900 9-22 102 85 45-91 75 12367 PYFB-0917 STANDARD COARSE TYPE 13-38 175 150 59-163 12221 PYFB-0918 STANDARD SUPER COARSE TYPE 25-38 178 150 118-163 12220 PYFD-0904 SHORT HEAD FINE TYPE 3-13 41 35 27-90 13164 PYFD-0906 SHORT HEAD MEDIUM TYPE 3-16 60 51 27-100 13321 PYFD-0907 SHORT HEAD COARSE TYPE 6-19 75 65 59-129 13316
