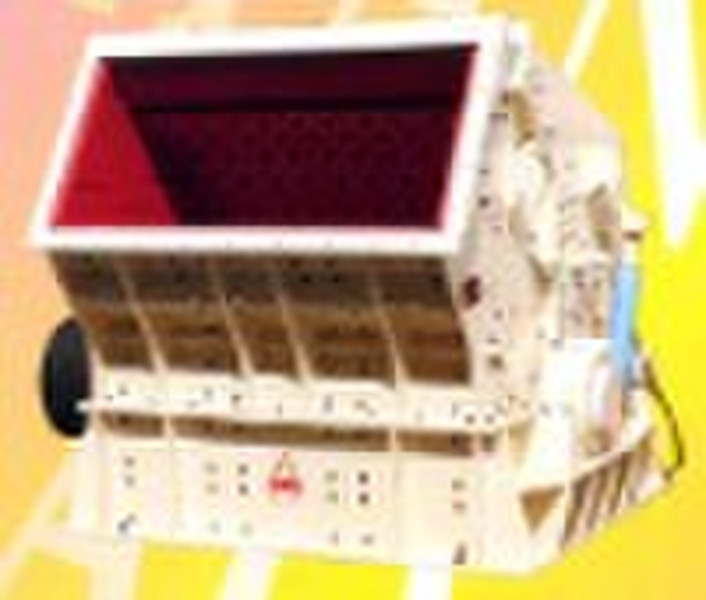

Impact Crusher

IMPACT CRUSHER, CRUSHER MODEL SPECIFICATION (mm) FEED OPENING (mm) MAX.FEEDING EDGE (mm) CAPACITY (t/h) MOTOR POWER (kw) WEIGHT (EXCLUDING MOTOR) (ton) PF-0607 V 644x740 320x770 100 5-10 30 4100 PF-0807 V 850x700 400x730 200 10-20 45 8250 PF-H-1007 VI 1000x700 400x730 250 20-40 55-75 9900 PF-A-1010 V 1000x1050 400x1080 250 30-60 55-90 12720 PF-B-1210 V 1270x1050 400x1080 300 60-100 110-160 14560 PF-B-1214 V 1270x1400 400x1430 300 80-140 132-180 19410 PF-1310 V 1300x1000 650x1350 250 60-80 90-110 12200 PF-1315 V 1320x1500 860x1520 300 100-150 180-260 19300 PF-1320 V 1320x2000 860x2030 300 200-250 300-375 24400 Note: These crushers are suitable for crushing hard rocks (such as basalt), the discharging sizes are smaller(less than 30mm), the proportion of the discharging materials, which are less than 30mm, is 80%.
