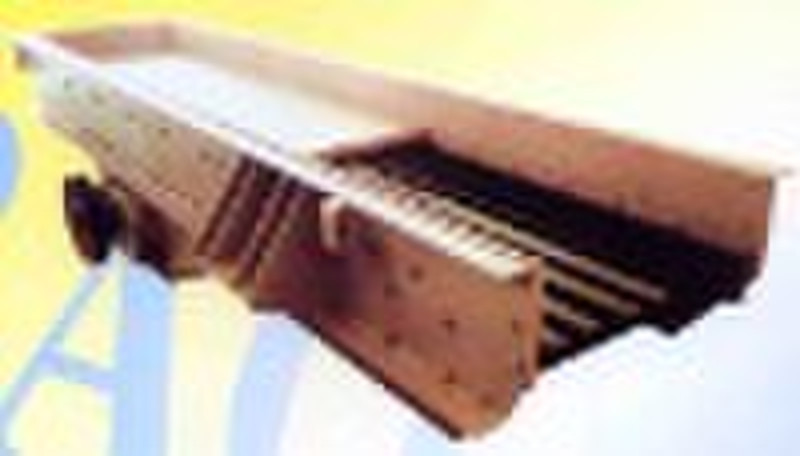

Vibrating Feeder
original price: 5 800 USD
Weiping Sui
Contact person
Basic Information
VIBRATING FEEDER, FEEDER The vibrating grizzly feeder is a king of linear direction vibration machinery.It makes a feature of smooth vibrating, reliable in operation, long service life. It suitable for feeding materials into the crusher smoothly while screening away the soil contained in the raw materials. It is widely used in the crushing and screening plants of the mining, building-material, silicate and chemical industries. PRINCIPAL TECHNICAL DATA OF VIBRATING FEEDERS MODELS MAX.FEED SIZE (mm) CAPACITY (t/h) SPEED OF ECCENTRIC SHAFT (rpm) MOTOR POWER (kw) INSTALLATION SLOPE (deg.) WEIGHT excluding motor (kg) SIZE OF FUNNEL (mm) ZSW-380x95 II 500 96-160 500-714 11 0 4082 3800x950 ZSW-420x110 580 120-240 500-500 15 0 4740 4200x1100 ZSW-490x96 500 120-240 500-800 15 0 5351 4900x960 ZSW-490x110 II 630 120-280 500-800 15 0 5352 4900x1100 ZSW-590x110 630 350 750 22 0 6130 5900x1100 ZSW-600x130 750 400-560 500-800 22 0 7800 6000x1300 ZSW-600x150 800 460-575 500-800 30 0 8666 6000x1500 ZSW-600x180 800 600-800 500-800 37 0 11800 6000x1800
Delivery terms and packaging
Packaging Detail: Because the overall dimensions and the weight of the vibrating feeder are greatlydifferent, we will supply you the size of the ship container (20ft or 40ft) as soon aswe know the model you select and the quantity you require. Delivery Detail: 30 days
Port: Shanghai
